SPECIFICATIONS
Brand Name: ANDPROG
Cable: RG174, 3meters
Choice: yes
Frequency Range: 1561.098~1602MHz
GPS type: Receiver & Antenna
High-concerned chemical: None
IS It With PCB: Yes
Ingress Protection: IP66/67
Model Name: GGB236
Mounting Method: Magnet/Adhesive
connector: SMA male
semi_Choice: yes
|
|
|
|
|
DIMENSIONS&SPECIFICATIONS |
|
|
|
Item |
Specifications |
|
|
Antenna(2 pins) |
Frequency Range |
1561.098~1602MHz |
|
Polarization |
RHCP |
|
|
Gain |
5dBic@PCB（Zenith） |
|
|
V.S.W.R |
＜1.5 |
|
|
Impedance |
50Ω |
|
|
Dimension |
33.5*33.5*6mm |
|
|
Axial Ratio |
3dB（max） |
|
|
LNA |
Gain |
28±2dB |
|
Noise Figure |
≤1.5dB |
|
|
Supply Voltage |
3~5V DC |
|
|
Current Consumption |
＜20mA |
|
|
V.S.W.R |
＜2.0 |
|
|
Mechanical |
Cable |
RG174 |
|
Connector |
SMA or others |
|
|
Radome Material |
ABS |
|
|
Mounting Method |
Magnet/Adhesive |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP67 |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
|

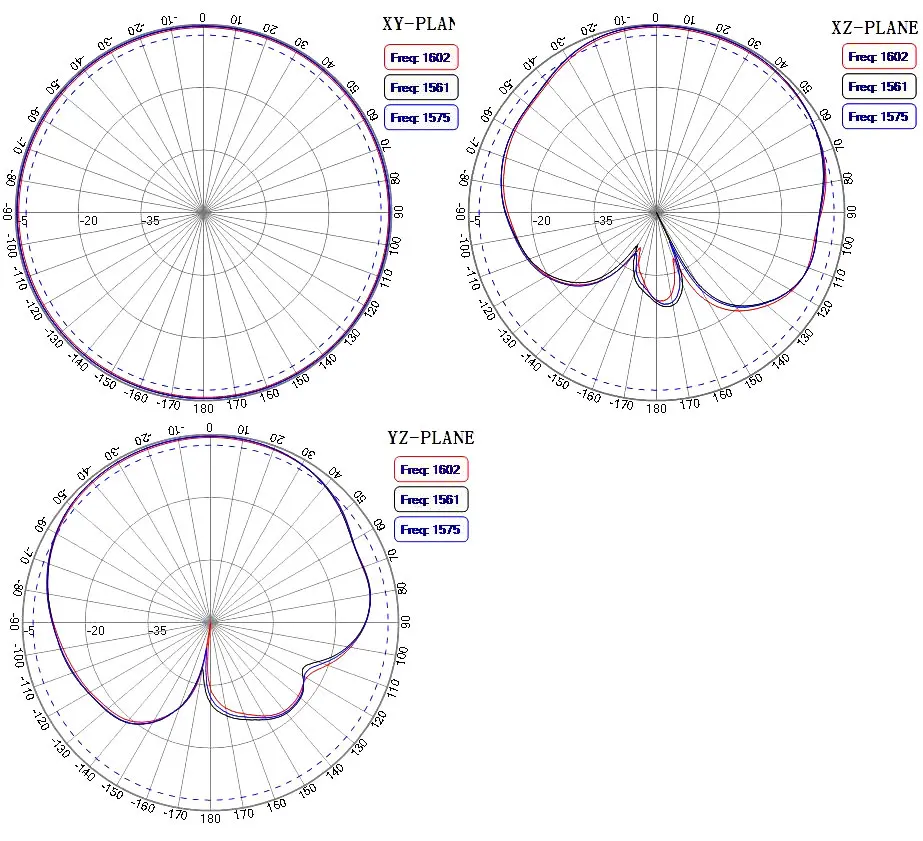

Radiation Pattern |
|
|
|
|
|
|
|
|
|
|
|
|
