SPECIFICATIONS

Brand Name: Foval

High-concerned chemical: None

Touchscreen: No

Wireless Support: No

Product Specifications

Product Type: DC to AC Power Inverter

Output Waveform: Modified Sine Wave

Input Voltage: DC 12V

Output Voltage: AC 110V

Output Frequency: 60Hz ±2Hz

Peak Power: 1500W / 2000W / 2600W / 6000W

Continuous Power: 750W / 1000W / 1300W / 3000W

Conversion Efficiency: ＞90%

No Load Current Draw: ＜0.8A

USB Output: 2

AC Outlet: 2 × US AC Sockets

Housing Material: Aluminum Alloy

Protection Functions: Low Voltage, Over Voltage, Overload, Over Temperature, Short Circuit Protection

Key Features

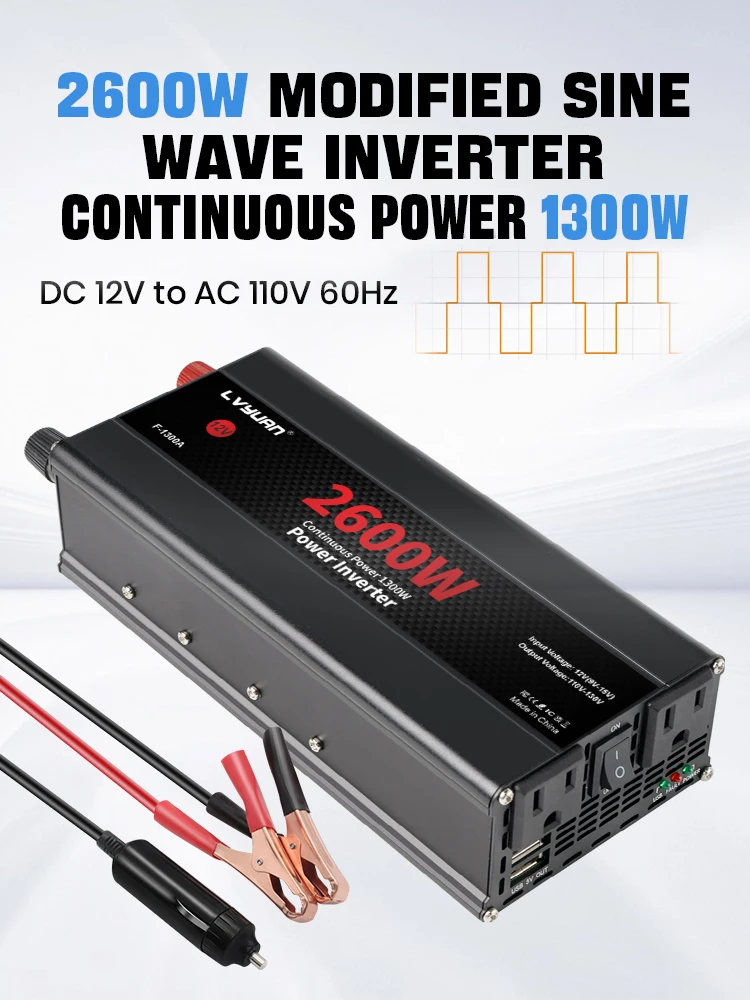

1. Modified Sine Wave Power Inverter
Converts DC 12V battery power into AC 110V 60Hz power for compatible household appliances, tools, chargers, lights, and outdoor devices.

2. High Power Output Options
Multiple power models are available from 1500W to 6000W peak power. Choose the suitable continuous power model according to your equipment requirements.

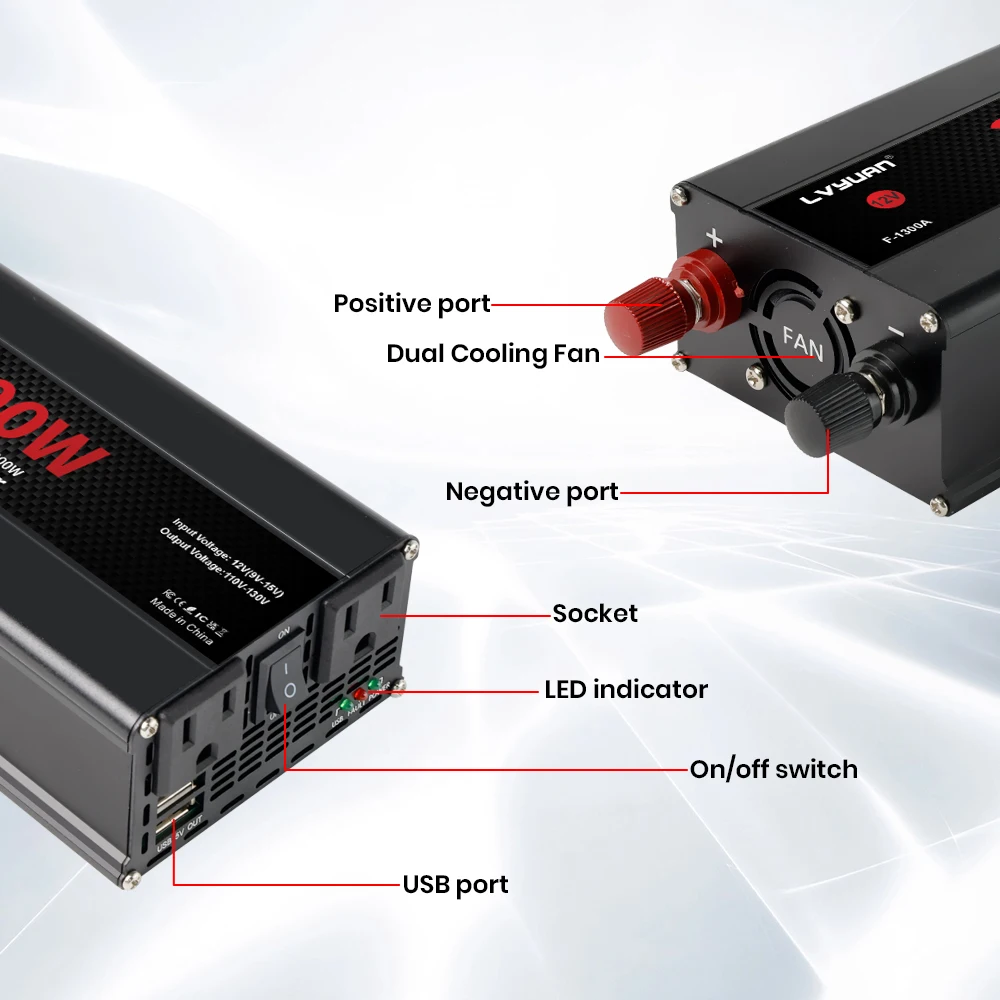

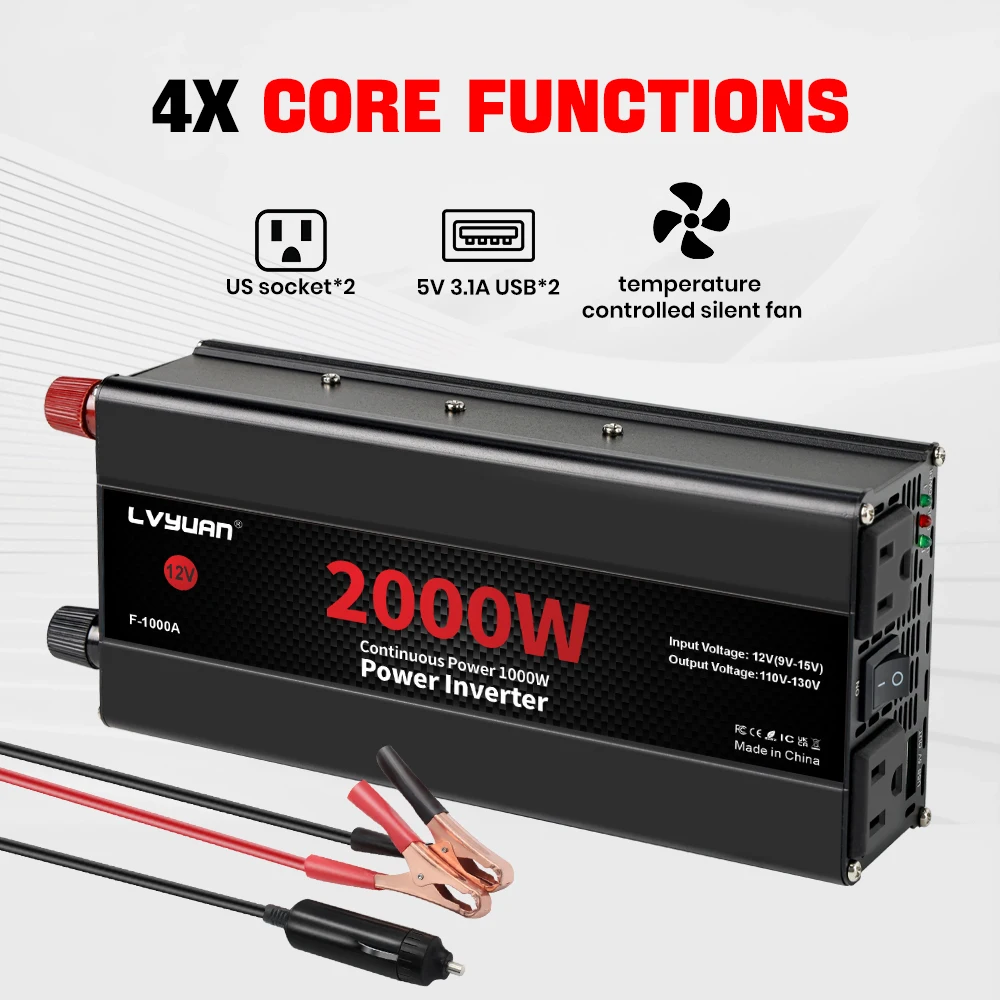

3. Dual US AC Outlets + USB Port
Equipped with 2 US AC sockets and a USB charging output, allowing you to power or charge multiple devices at the same time.

4. Built-In Safety Protection
Designed with low voltage, over voltage, overload, over temperature, and short circuit protection to help protect both the inverter and connected devices.

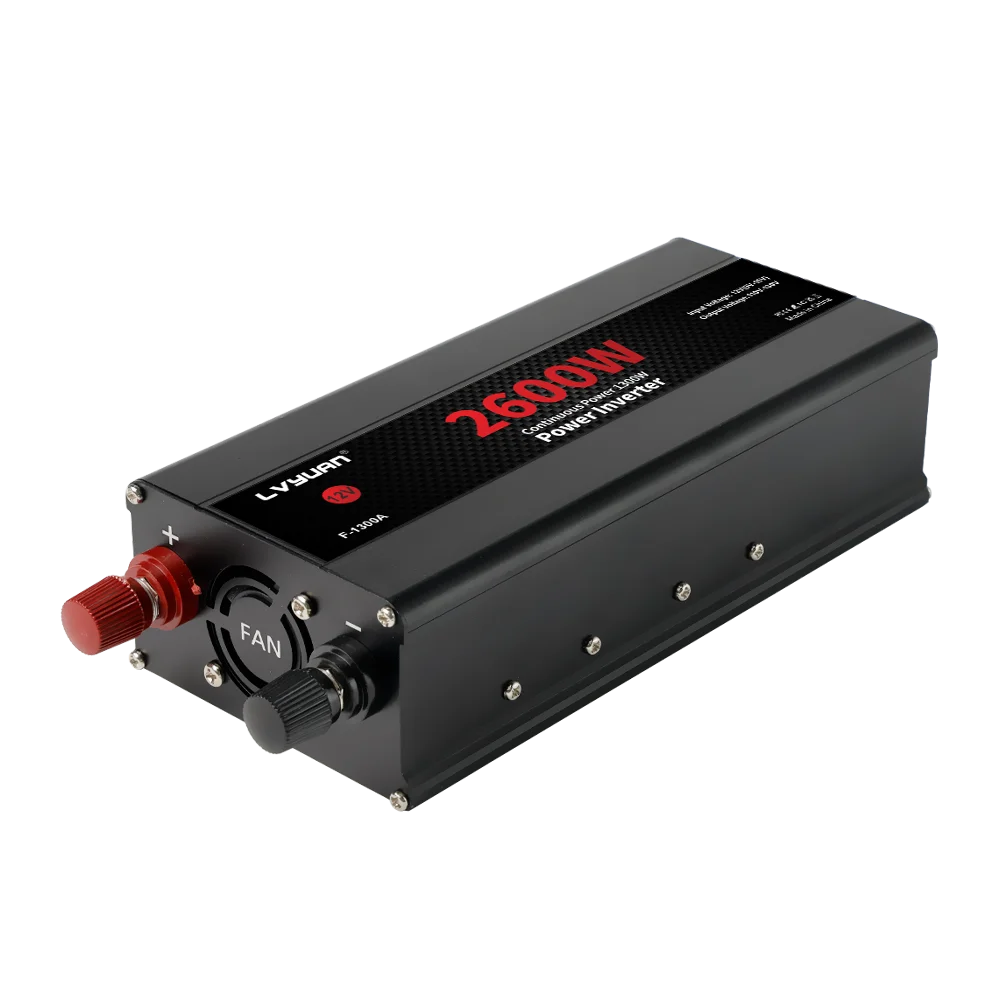

5. Durable Aluminum Alloy Housing
Strong aluminum alloy casing helps improve heat dissipation and durability, making it suitable for vehicles, camping, RV trips, emergency backup, and outdoor use.

Usage Notes

1. This inverter is designed for DC 12V battery systems only. Do not connect it to 24V batteries or other voltage systems.

2. Check the continuous power rating of your appliance before use. The total connected load must not exceed the inverter’s continuous power capacity.

3. Appliances with motors, compressors, pumps, or heating elements may require higher starting power. Please allow enough power margin before connecting them.

4. Modified sine wave inverters may not be suitable for some sensitive electronics, medical equipment, induction cookers, coffee machines, laser printers, or appliances requiring pure sine wave power.

5. Connect the red clamp to the battery positive terminal and the black clamp to the battery negative terminal. Incorrect polarity may damage the inverter.

6. Keep the inverter in a dry, ventilated area. Do not cover the cooling vents or use it near flammable materials.

7. Turn off the inverter before connecting or disconnecting cables and appliances.

8. For high-power use, connect directly to the battery using the supplied battery clamps. Do not use the car cigarette lighter socket for high-power appliances.
